Power Generation Machining & Turbine Manufacturing

Precision Power Generation Machining & Heavy Turbine Component Manufacturing

Greno Industries provides critical power generation machining services for turbine OEMs, utility operators, and power plant aftermarket service providers.

Backed by ISO 9001 and AS9100 certified manufacturing facilities, we engineer and machine tight-tolerance components designed to withstand severe thermal expansion, high cyclic mechanical fatigue, and high-pressure steam and combustion environments.

From massive multi-ton rotor shaft turnings and intricate 5-axis turbine nozzles to rapid-response replacement parts during planned plant outages, Greno combines high-rigidity CNC machinery with decades of superalloy machining expertise.

Power Generation Sectors Supported

Modern power infrastructure demands continuous, fail-safe operation. Greno manufactures components across all primary energy sectors:

  • Gas Turbine Power Plants: Hot-gas-path hardware, fuel nozzle assemblies, transition pieces, compressor wheels, and high-temperature shroud blocks engineered to resist thermal degradation up to 2,000°F+.

  • Steam Turbine & Combined Cycle: High-pressure (HP) and intermediate-pressure (IP) turbine valve components, rotor shafts, diaphragm rings, gland seals, and labyrinth packing rings.

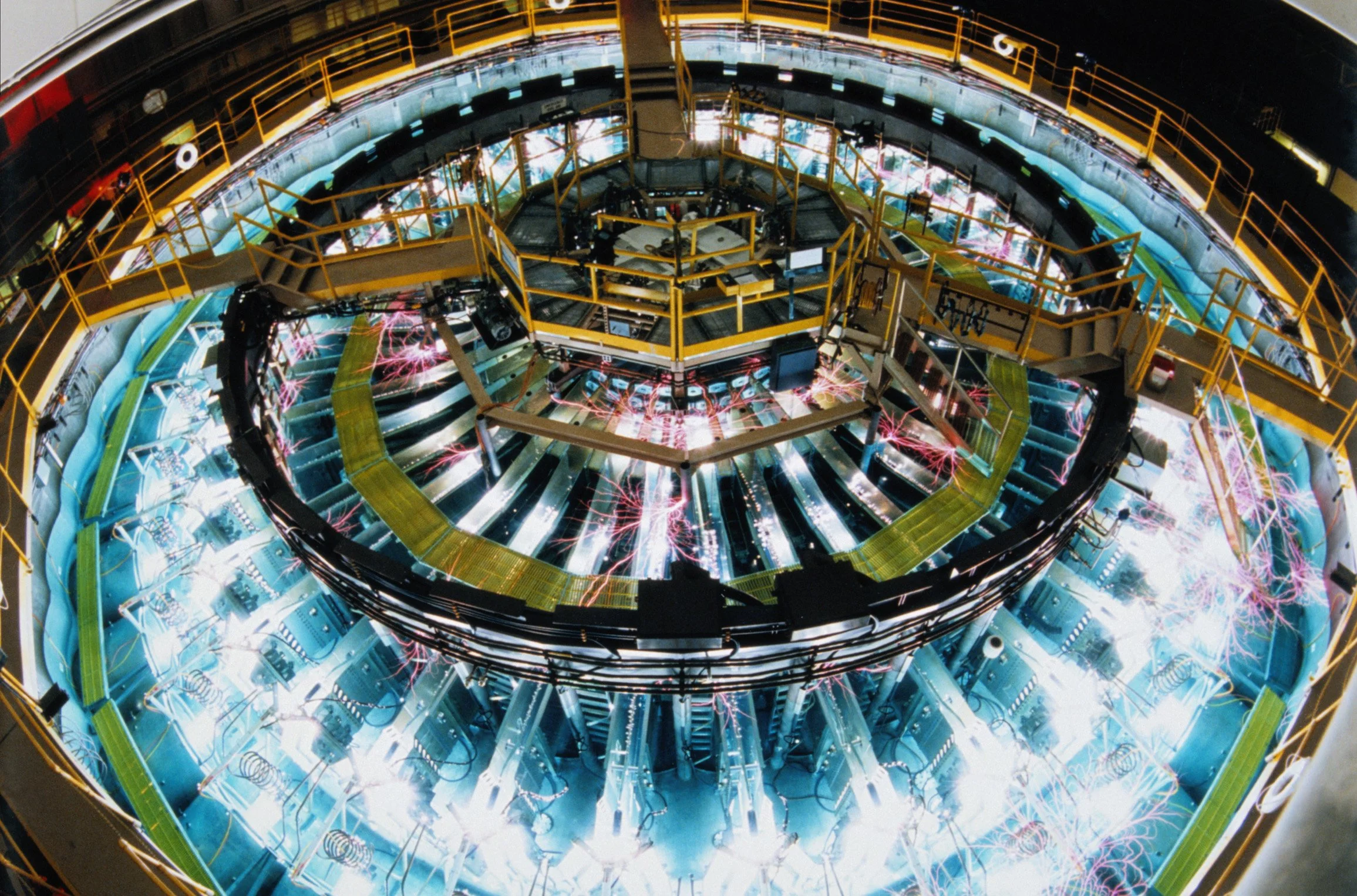

  • Nuclear Power Facilities: Non-safety and safety-related structural components, reactor coolant pump shaft sleeves, control rod drive mechanism (CRDM) housings, valve manifolds, and secondary cooling hardware built under rigid traceability standards.

  • Hydroelectric Generation: Heavy-duty wicket gate bushings, runner blade hardware, governor valve linkages, and turbine shaft sleeves subjected to continuous hydraulic cavitation and erosion.

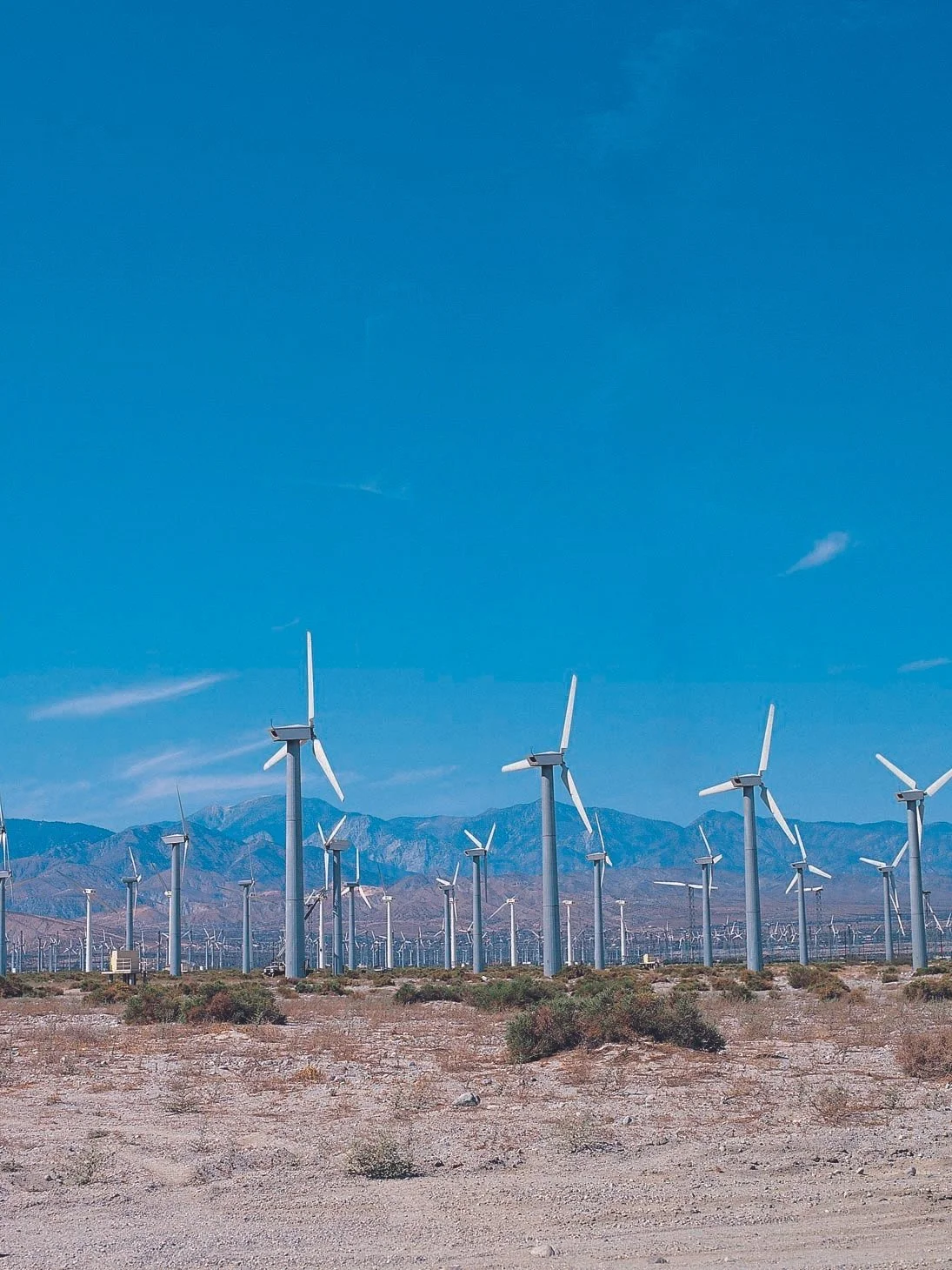

  • Wind & Renewables: Main drive shafts, pitch actuation pins, yaw ring gear blanks, and heavy structural gearbox mounts.

Heavy CNC Capabilities & Turbine Machining Precision

Machining heavy energy equipment requires rigid workholding, high-torque spindle setups, and expansive envelope capacities:

  • Large-Envelope CNC Turning: Heavy-duty horizontal and vertical turning lathes (VTL) capable of handling large-diameter turbine rings, flanged couplings, and shafts up to 60+ inches in length.

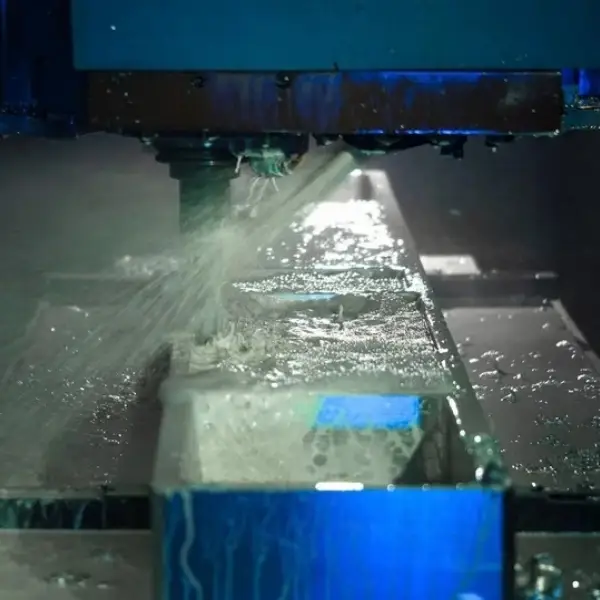

  • 5-Axis Simultaneous Milling: Continuous complex contouring for curved aerodynamic turbine airfoils, blisks, impellers, and intricate stator segments.

  • Deep Hole Drilling & Precision Boring: Precision internal bores for hollow rotor shafts, steam valve bodies, and hydraulic cylinder assemblies with concentricity held to ±0.0002 inches.

  • Wire & Sinker EDM: Non-contact EDM profiling for micro-cooling holes, tight keyways, spline cuts, and delicate seal grooves in ultra-hardened alloys.

Observing heavy multi-axis CNC machinery profile high-stress turbine hardware illustrates the tooling rigidity and cutter engagement required:

power generation | industries

High-Temperature Alloys & Power Generation Materials

Energy production involves extreme thermal and mechanical stresses. Greno specializes in machining high-integrity materials proven to resist oxidation, creep, and steam erosion:

Material FamilyKey Alloys MachinedPrimary Power Applications
Nickel-Base SuperalloysInconel 625, Inconel 718, Hastelloy X, WaspaloyGas turbine combustion liners, transition ducts, exhaust diffusers
Heat-Resistant Stainless Steels410, 422, 17-4 PH, 310 StainlessSteam turbine blades, valve stems, nozzle blocks, wear rings
High-Strength Forged Steels4140, 4340, 8620, Cr-Mo Alloys (F11, F22)Turbine drive shafts, coupling bolts, heavy flange forgings
Corrosion-Resistant AlloysMonel 400/K-500, Titanium (Grade 5), Bronze AlloysCondenser tube sheets, saltwater cooling pumps, hydro gate bushings
Wear & Hardfacing MaterialsStellite, Colmonoy overlaysHigh-wear steam valve seats, erosion shields, stop valve discs

Critical Power Generation Components Manufactured

  • Turbine Blading & Vanes: Precision-milled compressor blades, rotating turbine buckets, stationary guide vanes, and blisks.

  • Valves & Fluid Control Hardware: Main steam stop valves, governor valve plugs, bypass valve stems, high-pressure steam chests, and actuator pistons.

  • Rotor & Generator Assemblies: Rotor drive couplings, balance rings, generator shaft sleeves, bearing housings, and retention rings.

  • Combustion & Hot Gas Path: Swirler assemblies, fuel nozzles, spark igniter tubes, transition duct brackets, and flame detector bodies.

welder working | precision manufacturing

Plant Outage Support, Reverse Engineering & Traceability

Utility downtime directly translates to lost revenue. Greno’s manufacturing infrastructure is built to support critical timeline demands:

  • Fast-Turn Outage & Emergency MRO Support: Rapid component turnaround during scheduled spring/fall maintenance shutdowns and unplanned forced outages.

  • CMM Reverse Engineering: High-precision CMM probing and optical scanning of worn, obsolete, or legacy turbine parts to generate actionable CAD models and production prints.

  • Certified Quality Systems: Managed under ISO 9001:2015 and AS9100 Rev D standards, ensuring comprehensive process verification.

  • 100% Documentation Integrity: Full raw material test reports (MTR), heat treat validation, ultrasonic testing (UT), and magnetic particle inspection (MPI) documentation retained for complete operational compliance.

precision measurement | quality assurance | qa inspection

Power Generation Machining FAQs

Why is "power generation machining" distinct from standard industrial machining?

Power generation components endure sustained high-temperature creep, extreme rotational fatigue, high-velocity steam erosion, and corrosive environments. Machining these parts requires deep expertise in hard-metal cutting dynamics, thermal stress relief, micro-inch surface integrity, and extensive NDT testing to prevent catastrophic in-service failures.

Yes. We routinely assist plant operators with reverse engineering obsolete or unsupported legacy turbine hardware. Using coordinate measuring machines (CMM) and metallurgical material identification, we produce accurate 3D CAD models and machine drop-in replacement parts.

Our heavy-turning and horizontal milling centers handle turning diameters up to 60+ inches and large components weighing several tons, maintaining tolerances down to ±0.0002 inches across extended lengths.

Upload your 2D engineering drawings, 3D CAD files (STEP/IGES), material specs (e.g., ASTM, ASME, or proprietary utility grades), and delivery target through our secure RFQ portal. For emergency outage requests, contact our rapid-response production scheduling team directly.
